Automatic PET Plastic Stretch Blowing Machine SMC Rotary Cylinder PLC and Motor Core Components / Blowing Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	dongshi
Model Number:	HY-3000

Contact Now

Detailed Product Description

Plastic Processed:	PET	Max.bottle Height(mm):	300
Neck Diameter(mm):	35	Max.bottle Diameter(mm):	155
Voltage:	380v/280v	Dimension(lwh):	4000x1800x2000
High Pressure Valve Brand:	SMC	Clamping Force (kn):	20000
Rotary Cylinder Brand:	SMC	PLC Brand:	Huichuan
Power (kw):	45	Weight (kg):	4000
Automation:	Automatic	Warranty:	1 Year
Key Selling Points:	High Productivity	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, PLC
Product Name:	PET Bottle Blowing Machine	Suitable Bottle:	PET Bottle Size 100ml-20L
Type:	Automatic Botte-blowing Machines	Key Words:	Bottle Blow Making Machine
Capacity:	1500-8000PCS/H	Use:	Making PET Bottle

Product Description

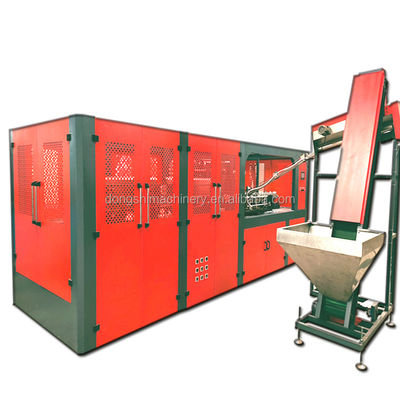

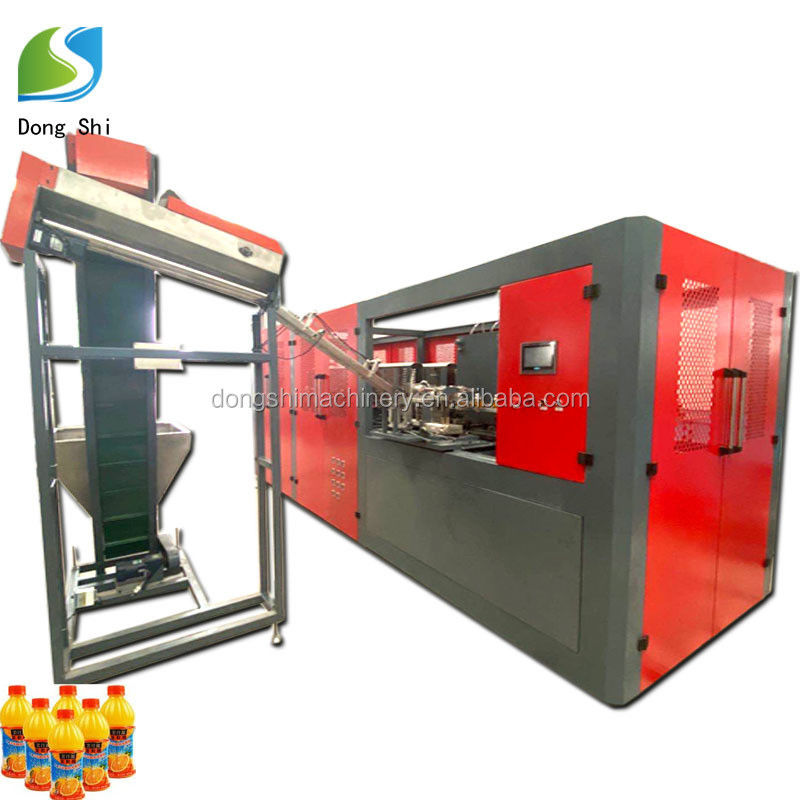

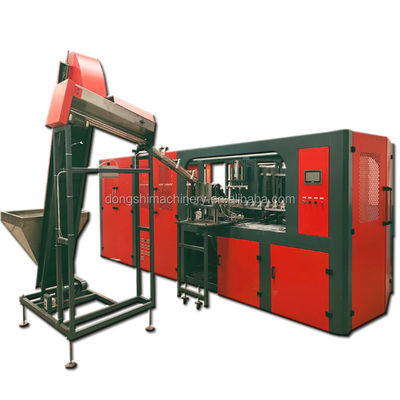

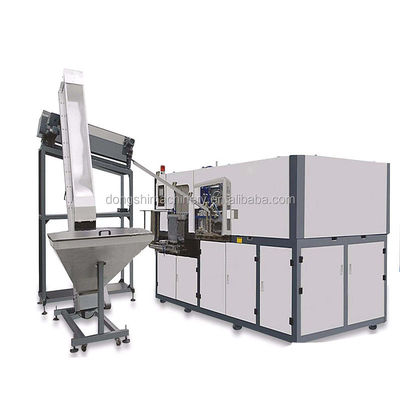

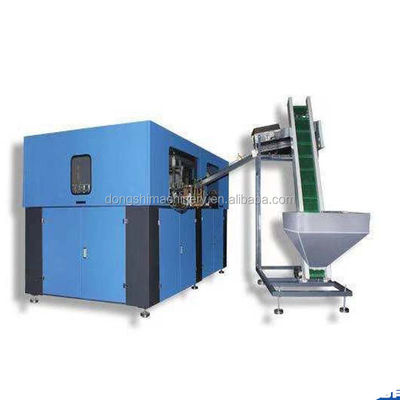

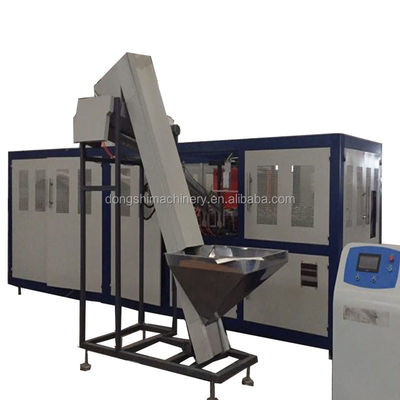

The automatic bottle blowing machine is one of the most stable two-step automatic bottle blowing equipment in our company, from one to one out of six cavities, the maximum blowable 0.1-15 L, suitable for blowing any shape of carbonated beverage bottles, mineral water bottles, cosmetic bottles, and other packaging containers made of crystalline plastics such as PET..

With automatic every mechanical action has a safety self-locking device, when a process failure, the program will automatically switch to a safe state;

Using infrared lamp heating, strong penetration, bottle billet rotation heating, track rotation, heating uniform, fast and reliable; The width and height of the lamp tube and reflective plate in the heating area can be adjusted to suit the heating of the bottle billet with different structure, and the automatic temperature discharge device is provided to ensure the constant temperature of the oven.

The moving parts of open and close die adopt high speed linear guide rail, which has the advantages of high wear resistance, light running and no vibration. Using an oil-free graphite copper sleeve, the machine is free of dirt, Servo motor control, accurate operation of the machine, fast speed can be in accordance with the production requirements of speed regulation without pole.

Technical parameters

Cavities	Clamping	Mold stroke(mm)	Stretch stroke(mm)	Cavity pitch(mm)
2	20000	120	30	320
4	48000	130	30	340
6	56000	3090	250	250
