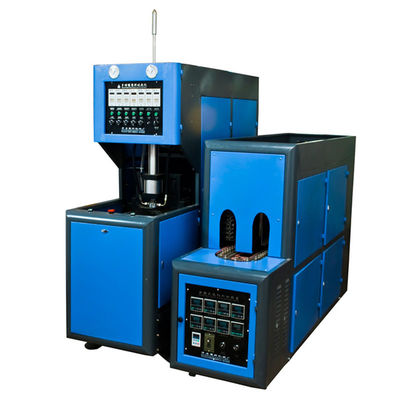

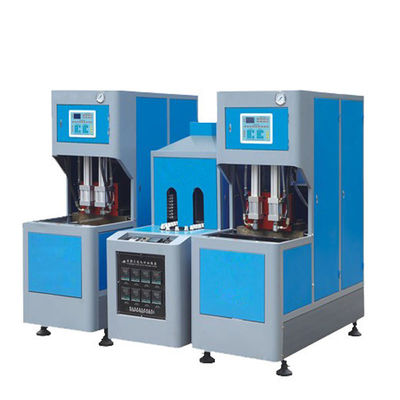

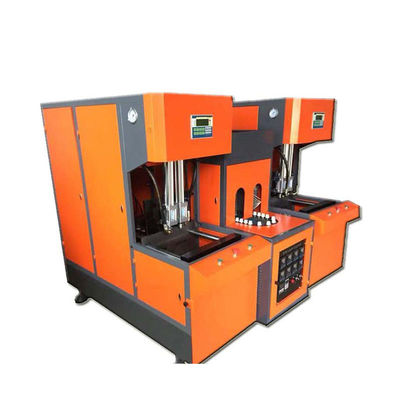

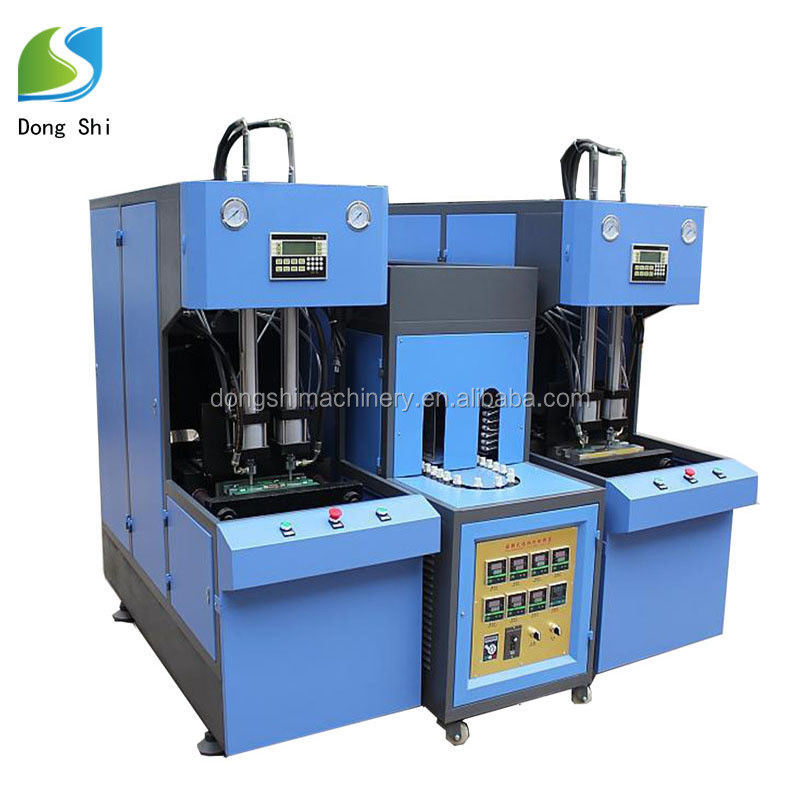

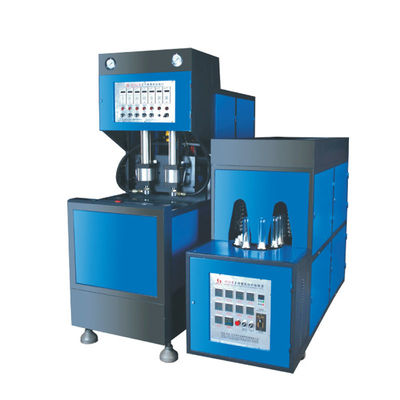

Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production

Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production

  • Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production
  • Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production
  • Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production
  • Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production
  • Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production
  • Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production
  • Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production
Product Details:
Place of Origin: Jiangsu, China
Brand Name: dongshi
Model Number: HY-99A
Contact Now
Detailed Product Description
Plastic Processed: PET Max.bottle Height(mm): 330
Neck Diameter(mm): 20 Max.bottle Diameter(mm): 100
Voltage: 220V/380V Dimension(l*w*h): 1650x650x1300
High Pressure Valve Brand: Ningbo Newland Clamping Force (kn): 50
Rotary Cylinder Brand: SMC PLC Brand: Omron
Power (kw): 10 Weight (kg): 1350
Automation: Semi-automatic Warranty: 1 Year
Key Selling Points: Easy To Operate Machinery Test Report: Provided
Video Outgoing-inspection: Provided Core Components: Motor, PLC
Product Name: Semi-automatic Blowing Machine Suitable Bottle: Square,round
Key Words: Blowing Mold Machine

Product Description
1) This machine is characterized by Low cost, high efficiency and its easy operation and maintenance as well as its stable performance with advanced PLC. 2) Preform self-rotation and infrared preheater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production. 3) High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the preheater, and keep the proper temperature and humidity invariable. 4) High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure. 5) Introduce the air cylinder to avoid contamination and noise. 6) Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 0
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 2
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 4
Detailed Images
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 6
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 8
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 10
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 12
Technical parameters
Cavities
Total power(KW)
Theoretical output(b/h)
Mold opening stroke(mm)
weight(kg)
2
17.5
1400-1800
160
1250
4
18
2000
350
1300
1
15
900
450
1400
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 14
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 16
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 18
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 20
Customer Photos
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 22
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 24
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 26
Zhangjiagang Dongshi Machinery Co., Ltd. is the production of small and medium-sized beer, drinks, various specifications of liquid filling machinery equipment blowing machine equipment professional units. Our unit insists on market-oriented, science and technology as the leading, quality as the main line, service as the guarantee, establish a sound quality assurance system, and equipped with perfect testing and inspection facilities, we have a quality of technology development and production and manufacturing staff, with rich design and manufacturing experience. We offer all kinds of carbonated drinks, pure water, mineral water, juice, soy milk, alcohol and other edible liquid bottles, cans, cups, barreled, hot filling to our customers at home and abroad Set of equipment and drinking water, mineral water, pure water and other water treatment equipment. RCGF series, CGF series, DCGF series bottled and QGF bottled beverage production bottled beverage production line, the QHS series beverage mixer, all digested and absorbed Germany, Italy, Japan's advanced technology manufacturing, with the 1990s international advanced level. At the same time, our unit can provide customers with process consulting, plant graphic design, installation and commissioning, technical training and other supporting services. At present, the company's products sell well in 29 provinces, cities, autonomous regions, and exported to Southeast Asia, Russia, West Asia, Africa and more than 20 countries and regions.
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 28
Semi-automatic plastic bottle making machine/Semi-Automatic Stretch Blow Moulding Machine for Plastic Bottle Production 30
Above Price Is Not Accurate,Only For Your Reference. If You Need Latest Quotation,Please Contact Us! Send your Inquiry Details in the Below , Click "Send" Now .
