Name: Full Automatic Complete Small Scale Production 18.9L 19 Liter 5 Gallon Bottle Filling Line
Brand: Zhangjiagang Dongshi Machinery Co., Ltd.
Availability: InStock

Home Products 5 gallon drum filling machine

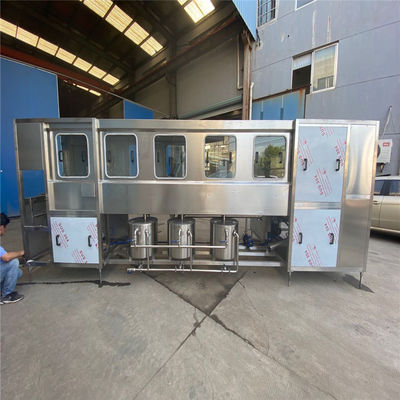

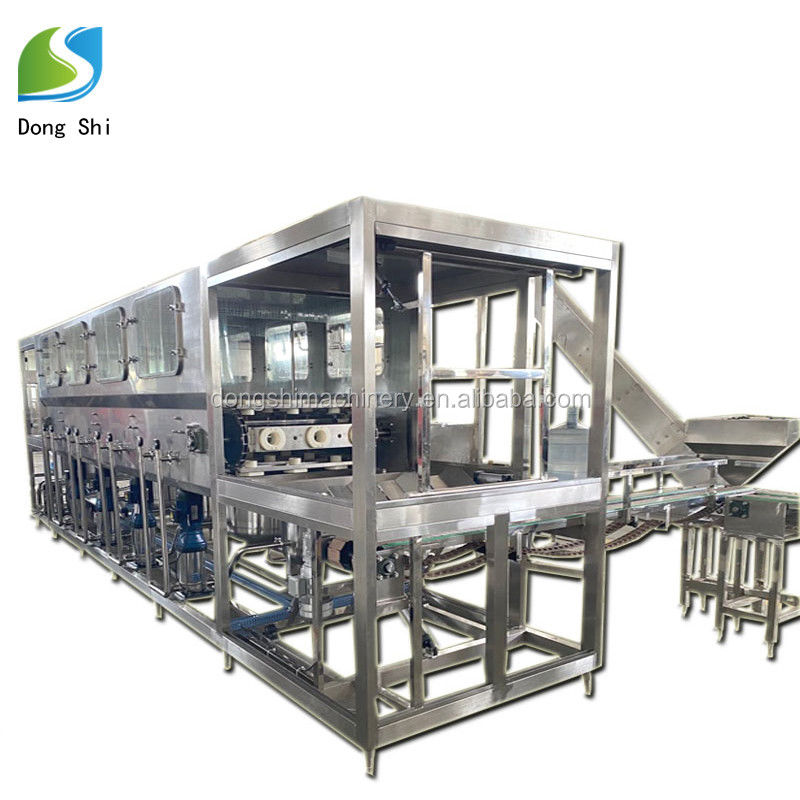

Full Automatic Complete Small Scale Production 18.9L 19 Liter 5 Gallon Bottle Filling Line

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	dongshi

Contact Now

Detailed Product Description

Application:	Beverage, Food	Packaging Type:	Bottles, Barrel
Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V, 380V, 400V, 415V, 460V
Dimension(lwh):	2400x1650x2500mm	Warranty:	1 Year
Key Selling Points:	High Productivity	Filling Material:	Water
Filling Accuracy:	99%	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Pump, PLC
Filling Nozzle:	2	After-sales Service Provided:	Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training
Weight (KG):	250	Filling Volume:	18.9L
Product Name:	Liquid Filling Machine	Filling Material:	Drinking Water
Bottle Type:	3-5 Gallon	Keywords:	Fillng Machine
Name:	Automatic Water Filling Machine	Usage:	Liquid Packaging
Capacity:	300BPH	Material:	304

Product Description

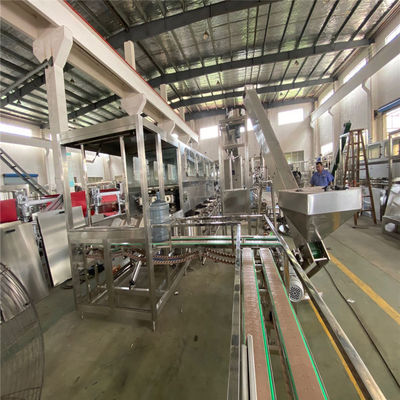

XMY machine provide a turnkey solution for 5 gallon water
Complete solution for the 5 gallon bucket water include :
Water Treatment System / Decapping Machine / Brusher Machine / Rinsing Filling Capping Machine / Automatic Cap Sleeve Labeling
Machine / Shrink Sealing Machine / Date Pinter / Automatic Bagging Machine / Automatic Palletizer .

Automatic capping machine

After the bottle enters the extraction cover area, the detection element completes the detection of the barrel position, and the cylinder block of the bottle block position the barrel. Pull cover cylinder action, pull cover head overall down, grab cover cylinder action, grab cover back pull cover cylinder action, pull cover head overall up, complete pull cover.

Brush washout

The empty barrel is entered into the external washing machine by the device of feeding the bottle and pulling the wheel. The center main brush is used to wash the mouth and body of the barrel. The four bottom brushes are self-transmitted simultaneously with the central brush, which can fully remove the bottom dirt of the barrel during the washing process, and assist other brushes to keep the barrel balance. With detergent auxiliary spray, there is no cleaning dead angle and blind area, at the outlet of the barrel, clean water spray system will wash the washing detergent clean.

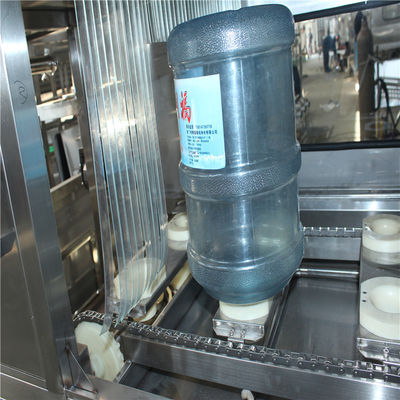

Automatic bottle

The automatic bottle feeding part is composed of adjustable height equal pitch bottle conveying chain, bottle beating mechanism, bottle feeding mechanism, etc. The equal pitch transport chain ensures the consistency of the distance, the height of the transport chain is adjustable, and the drop of the five gallon bottle is moderate.

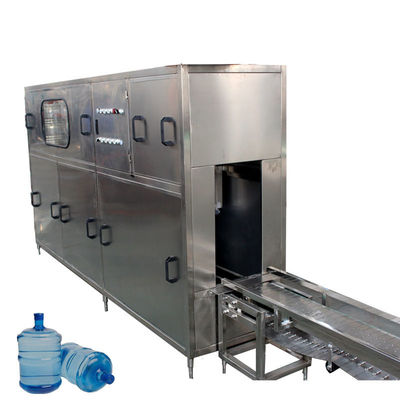

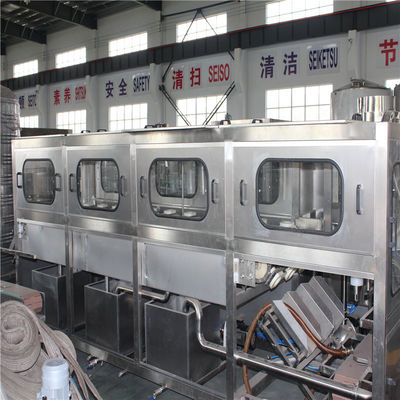

Flush and filling

Barreled line is the core equipment for 5 gallon barreled drinking water production line. Is pure water, pure water production ideal equipment. Made of high quality stainless steel, corrosion resistant, easy to clean

Light inspection

The lamp inspection box adopts stainless steel protective outer cover, the light illumination is comfortable and suitable, not only conforms to the national hygiene standard, but also can clearly check the impurities, defects and particles inside and outside the barrel.

Automatic flushing

Water tank this machine has three, namely potion 1 water tank, potion 2 water tank, return water tank. Each water tank is provided with a dosing funnel and used as a filter to clean the tank from the funnel. The funnel is provided with a leakage net, which can be replaced and cleaned at work without affecting the normal operation of the machine.

S team shrinkage cap machine

Heat shrink machine temperature continuously adjustable, suitable for a variety of heat shrink film, but also suitable for different speeds, using high heat material, good insulation performance, low energy consumption.

Bagging machine

Conveying system: variable frequency adjustable speed operation. 2. hot cooling mode: medium pressure air dry cooling. 3. sleeve film mode: step motor assisted film feeding mode. 4. sealing method: heating wire pressure hot sealing method. 5. into the barrel: automatic detection into the barrel, automatic delivery. 6. safety protection: mechanical protection.

Stacker crane

The staching method is convenient,simple ,stable and efficient,which can greatly save manpower

Product Paramenters

Model	QGF-100	QGF-300	QGF-450	QGF-600
capatity(b/h)	100	250-300	400-450	550-600
Moto power(kw)	1.38	3.8	3.8	7.5
Filling heads	1	2	3	4

Related Products

Our Service

1.Provide a full set of production process parameters. 2.All equipment and required water, electricity and gas shall be arranged according to the requirements of the production line. Driving and raw materials, the supplier sent commissioning process personnel to the factory for equipment installation and commissioning. The buyer arranges 2-3 employees to cooperate with the master to install and debug. 3. Provide spare parts for one year at random. 4.The full set of equipment provides one year warranty under normal production conditions. 5.Provide technical support and new process research results at any time.
