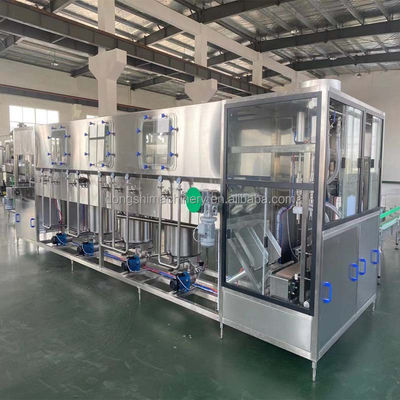

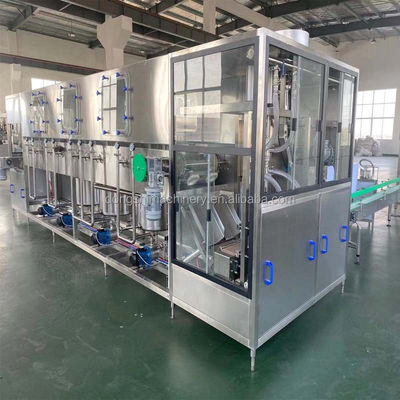

Name: Automatic 19L/5Gallon Plastic Bottle Water Filling Machine Includes Pump PLC Core for Beverage Pure Water Making
Brand: Zhangjiagang Dongshi Machinery Co., Ltd.
Availability: InStock

Home Products 5 gallon drum filling machine

Automatic 19L/5Gallon Plastic Bottle Water Filling Machine Includes Pump PLC Core for Beverage Pure Water Making

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	dongshi

Contact Now

Detailed Product Description

Application:	Beverage, Food	Packaging Type:	Bottles, Barrel
Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V, 380V, 400V, 415V, 460V
Dimension(lwh):	2400x1650x2500mm	Warranty:	1 Year
Key Selling Points:	High Productivity	Filling Material:	Water
Filling Accuracy:	99%	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Pump, PLC
Filling Nozzle:	2	After-sales Service Provided:	Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training
Weight (KG):	500	Filling Volume:	19L
Product Name:	Liquid Filling Machine	Filling Material:	Drinking Water
Bottle Type:	3-5 Gallon	Keywords:	Fillng Machine
Name:	Automatic Water Filling Machine	Usage:	Liquid Packaging
Processing Types:	Automatic 19L/5Gallon Plastic Bottle Water Filling Machine	Capacity:	300BPH
Material:	304

Product Description

Hot sale 3 and 5 gallon barrel pure water filling machine from Dongshi machinery:

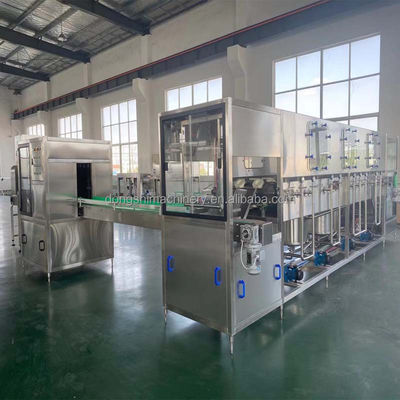

This series of machine integrate rinsing , filling and capping , suitable for filling the pure water or the mineral water in 3 or
5 gallons and the filling speed ranges from 100BPH to 1500BPH .

Automatic capping machine

After the bottle enters the extraction cover area, the detection element completes the detection of the barrel position, and the cylinder block of the bottle block position the barrel. Pull cover cylinder action, pull cover head overall down, grab cover cylinder action, grab cover back pull cover cylinder action, pull cover head overall up, complete pull cover.

Brush washout

The empty barrel is entered into the external washing machine by the device of feeding the bottle and pulling the wheel. The center main brush is used to wash the mouth and body of the barrel. The four bottom brushes are self-transmitted simultaneously with the central brush, which can fully remove the bottom dirt of the barrel during the washing process, and assist other brushes to keep the barrel balance. With detergent auxiliary spray, there is no cleaning dead angle and blind area, at the outlet of the barrel, clean water spray system will wash the washing detergent clean.

Automatic bottle

The automatic bottle feeding part is composed of adjustable height equal pitch bottle conveying chain, bottle beating mechanism, bottle feeding mechanism, etc. The equal pitch transport chain ensures the consistency of the distance, the height of the transport chain is adjustable, and the drop of the five gallon bottle is moderate.

Flush and filling

Barreled line is the core equipment for 5 gallon barreled drinking water production line. Is pure water, pure water production ideal equipment. Made of high quality stainless steel, corrosion resistant, easy to clean

Light inspection

The lamp inspection box adopts stainless steel protective outer cover, the light illumination is comfortable and suitable, not only conforms to the national hygiene standard, but also can clearly check the impurities, defects and particles inside and outside the barrel.

Automatic flushing

Water tank this machine has three, namely potion 1 water tank, potion 2 water tank, return water tank. Each water tank is provided with a dosing funnel and used as a filter to clean the tank from the funnel. The funnel is provided with a leakage net, which can be replaced and cleaned at work without affecting the normal operation of the machine.

S team shrinkage cap machine

Heat shrink machine temperature continuously adjustable, suitable for a variety of heat shrink film, but also suitable for different speeds, using high heat material, good insulation performance, low energy consumption.

Bagging machine

Conveying system: variable frequency adjustable speed operation. 2. hot cooling mode: medium pressure air dry cooling. 3. sleeve film mode: step motor assisted film feeding mode. 4. sealing method: heating wire pressure hot sealing method. 5. into the barrel: automatic detection into the barrel, automatic delivery. 6. safety protection: mechanical protection.

Stacker crane

The staching method is convenient,simple ,stable and efficient,which can greatly save manpower

Product Paramenters

Model	QGF-150	QGF-300	QGF-450	QGF-600
capatity(b/h)	150	250-300	400-450	550-600
Moto power(kw)	1.38	3.8	3.8	7.5
Filling heads	1	2	3	4

Related Products

Our Service

1.Provide a full set of production process parameters. 2.All equipment and required water, electricity and gas shall be arranged according to the requirements of the production line. Driving and raw materials, the supplier sent commissioning process personnel to the factory for equipment installation and commissioning. The buyer arranges 2-3 employees to cooperate with the master to install and debug. 3. Provide spare parts for one year at random. 4.The full set of equipment provides one year warranty under normal production conditions. 5.Provide technical support and new process research results at any time.

Packing&Shipping

Customer Photos

Company Profile

Zhangjiagang Dongshi Machinery Co., Ltd. is the production of small and medium-sized beer, drinks, various specifications of liquid filling machinery equipment blowing machine equipment professional units. Our unit insists on market-oriented, science and technology as the leading, quality as the main line, service as the guarantee, establish a sound quality assurance system, and equipped with perfect testing and inspection facilities, we have a quality of technology development and production and manufacturing staff, with rich design and manufacturing experience. We offer all kinds of carbonated drinks, pure water, mineral water, juice, soy milk, alcohol and other edible liquid bottles, cans, cups, barreled, hot filling to our customers at home and abroad Set of equipment and drinking water, mineral water, pure water and other water treatment equipment. RCGF series, CGF series, DCGF series bottled and QGF bottled beverage production bottled beverage production line, the QHS series beverage mixer, all digested and absorbed Germany, Italy, Japan's advanced technology manufacturing, with the 1990s international advanced level. At the same time, our unit can provide customers with process consulting, plant graphic design, installation and commissioning, technical training and other supporting services. At present, the company's products sell well in 29 provinces, cities, autonomous regions, and exported to Southeast Asia, Russia, West Asia, Africa and more than 20 countries and regions.
